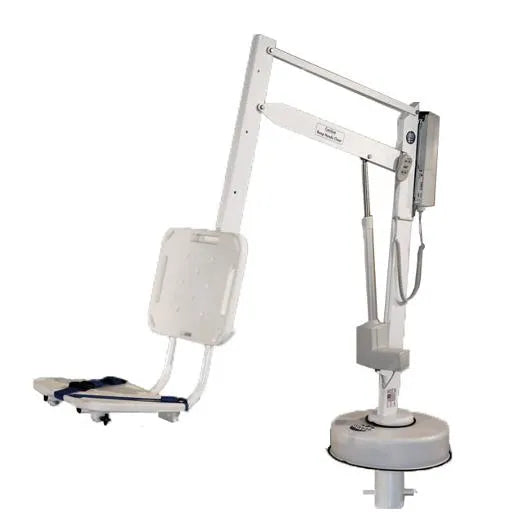

S.R. Smith Splash! Spa Lift – ADA Compliant Spa Lift (Part #375-0000)

The S.R. Smith Splash! Spa Lift (375-0000N) is a 400 lb ADA compliant, third-party verified lift designed specifically for above-ground spas and hot tubs with walls up to 48 inches above the deck — therapy center hydrotherapy pools, hotel and resort spas, aquatic rehabilitation facilities, and residential hot tubs with elevated shells. The Splash! Spa uses the same LiftOperator Intelligent Control System and medical-grade LINAK actuator as the full Splash! series, delivering precise, reliable lift motion to the correct spa entry height with user-controlled 344-degree rotation. Battery powered. Waterproof hand control. Footrest and seatbelt included. Powder-coated stainless steel and aluminum construction. Gray Mist finish. Semi-portable — removes from deck anchor for winter storage or seasonal removal. Anchor sold separately. Deck Profile Data Sheet required at time of order. ADA compliant (ADAAG 2010). 3-year frame + 2-year electronics + 1-year pro-rated battery warranty. By S.R. Smith. Item 375-0000N.

Key Specifications

Who the Splash! Spa Is For

The Splash! Spa is the right lift for any facility where the only water feature requiring accessible entry is an above-ground spa or hot tub — no in-ground pool involved. The lift reaches up and over the spa wall (up to 48 inches above the deck), rotates over the water, and lowers the user in. Common applications:

• Hotel and resort spas — above-ground spa shells adjacent to pool areas, where ADA compliance requires accessible spa entry for guests with mobility limitations
• Aquatic therapy and rehabilitation facilities — hydrotherapy pools and spa tanks used for warm-water therapy, where therapists need patients to enter independently or with minimal assistance
• Senior living communities — spa and hot tub amenities that residents with mobility limitations currently cannot access without the lift
• Residential spa owners — homeowners with above-ground hot tubs who want to restore or maintain independent spa access for themselves or a family member with mobility challenges
• Wellness centers and day spas — hydrotherapy tub access for clients with mobility limitations who are otherwise excluded from spa services

Up to 48 Inches Above the Deck — What That Covers

Standard above-ground portable hot tubs typically have walls in the 32"–36" range. Inground-look above-ground spas and many commercial spa shells run 36"–42". The Splash! Spa's 48-inch wall height capability covers virtually every standard above-ground spa configuration on the market, including:

• Portable plug-and-play hot tubs (typically 32"–36" walls)
• Semi-inground and raised spa shells (36"–42")
• Commercial spa tanks and hydrotherapy pools installed on raised platforms (up to 48")

For spas taller than 48 inches above deck level, call us before ordering — a different configuration or the Extended Reach model may be needed: 866-218-0902.

LiftOperator Intelligent Control + LINAK Actuator

The Splash! Spa uses the same LiftOperator Intelligent Controller and medical-grade LINAK screw/spline actuator as the rest of the Splash! series — the same control system found in medical lifting applications worldwide. Key operational characteristics:

• Programmable stop height — the controller is configured (during installation, based on your Deck Profile data) to stop at the correct spa entry height for your specific wall dimension; the user does not have to judge the right stopping point
• Safe stop at any position — the LINAK actuator holds position at any point in the travel range; releasing the control or a power interruption mid-motion stops and holds the seat rather than allowing it to drop
• User-operable waterproof handset — the user controls the full lift cycle from the seat; no staff assistance required for ADA-compliant independent operation

Semi-Portable — Remove for Storage or Events

The Splash! Spa removes from its deck anchor without tools or hardware modification. The anchor socket remains in the deck; the lift body lifts out. Uses for this portability:

• Winter storage — facilities in freeze-prone climates (and MDS customers with northern properties or seasonal second homes) can remove the lift and store it indoors when the spa is closed for the season
• Event clearance — spa deck areas used for events can have the lift temporarily removed to clear the space, then replaced when the spa reopens
• Security — the lift body can be removed and stored when the facility is closed, reducing theft and vandalism exposure

Splash! Spa vs. Aqua Creek Neptune — Choosing Your Spa Lift

Wall height is the deciding factor. Measure your spa wall height from the deck surface to the top of the spa wall before ordering either lift. Under 48": either lift works — differentiate on controller preference and portability. 49"–68": Neptune is the only option. 866-218-0902.

Warranty

• Frame — 3-year limited: S.R. Smith warrants the frame against defects in material and workmanship for 3 years. Powder coat paint finish is excluded — surface scratching with normal use is expected and not covered.
• Electronics and motor — 2-year full: All electronic and motor components (excluding batteries) have full 2-year coverage. S.R. Smith will repair or replace any component found defective within the warranty period.
• Battery — 1-year pro-rated: 100% replacement coverage in the first 90 days. 50% coverage from day 91 through day 365. Battery warranty requires normal maintenance — charge regularly when not in use. Contact S.R. Smith warranty support at 800-824-4387 or customercare@srsmith.com for claims.

FAQs

How high a spa can the Splash! Spa reach?

Up to 48 inches above the deck surface. Measure your spa wall height from the deck to the top of the spa wall before ordering. If your spa wall is taller than 48 inches (common with some swim spas), see the Aqua Creek Neptune, which accommodates walls up to 68 inches. Call us with your measurement: 866-218-0902.

Does it work for an in-ground pool too?

No — the Splash! Spa is configured specifically for above-ground spa access. For facilities with both an in-ground pool and an above-ground spa, the Splash! Hi/Lo serves both from one anchor. For in-ground pool only, see our pool lift collection.

What is the Deck Profile Sheet?

A form S.R. Smith requires at time of order to configure the lift for your specific spa wall height and deck configuration. We will send it to you and walk through it — call us before ordering: 866-218-0902. It can also be completed at srsmith.com/liftprofile.

Can it be removed during the off-season?

Yes — the Splash! Spa is semi-portable and removes from the deck anchor without tools. The anchor stays in the deck; the lift body stores indoors. This is a significant advantage for seasonal spa facilities and northern second-home owners.

Does this need to be plugged in to operate?

No — the Splash! Spa runs on a 24V rechargeable battery included with the lift. No hardwired electrical connection near the water is required. Charge the battery via the included charger between sessions.

Is this ADA compliant for our commercial spa?

Yes — the Splash! Spa meets ADAAG 2010 and has been independently third-party verified. For commercial spas (hotels, resorts, therapy centers), proper anchor installation and deck clearance per ADA standards are required for full compliance. Call us for commercial guidance: 866-218-0902.
