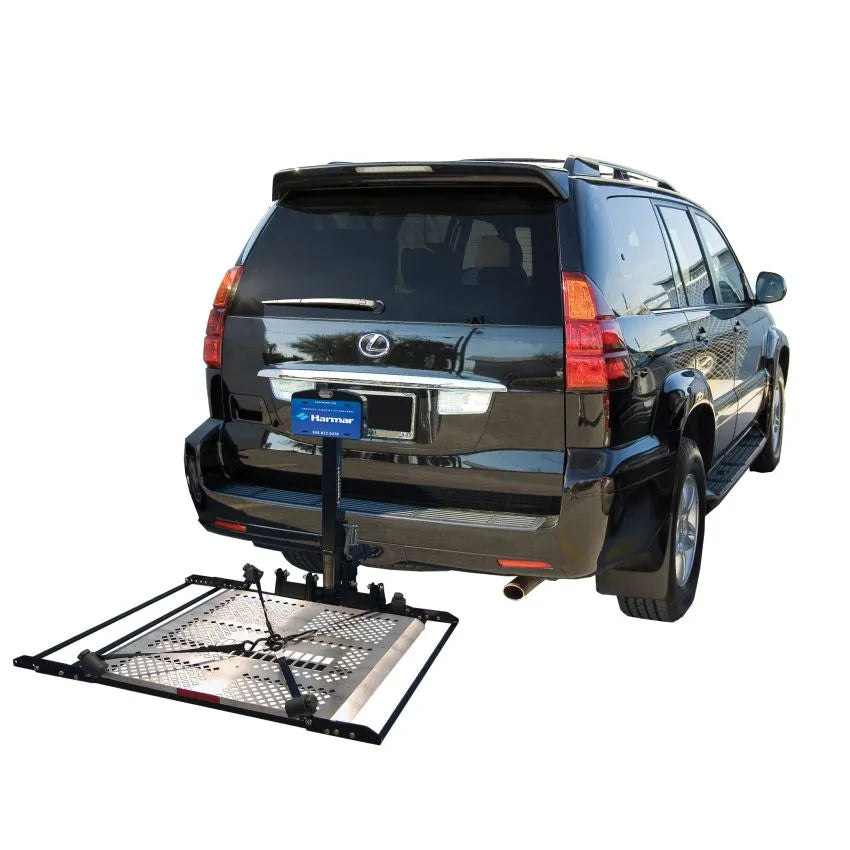

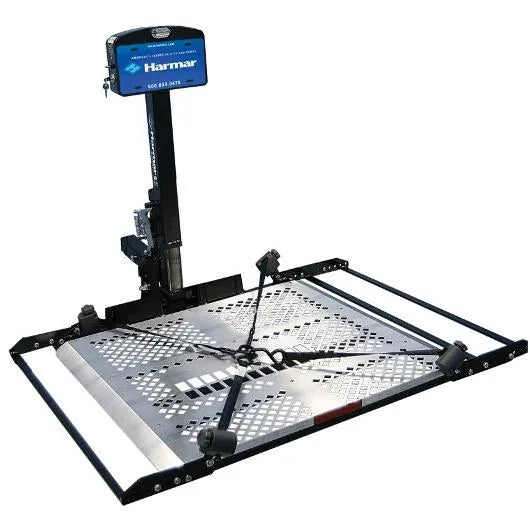

Harmar AL301XLHD Heavy Duty Extra Large Fusion Lift
Our Price: $3,395.00
/
Description
The Harmar AL301XLHD Heavy Duty Extra Large Fusion Lift is Harmar's most capable exterior platform lift — the largest platform and the highest capacity in the entire Harmar outside lift lineup. It takes the AL301XL's oversized 36" × 39" Stars-N-Stripes platform (with optional adjustable cradles extending to 53") and pairs it with a heavy-duty motor rated to 400 lbs — making it the only Harmar exterior lift that delivers maximum platform size and maximum weight capacity together. Designed for bariatric power chairs, large heavy-duty scooters, and any device too wide, too long, or too heavy for any other Harmar exterior lift. Four self-tensioning Q'Straint retractors with front and rear cradles. No device modifications required. Class III hitch required. 102 lbs installed. Minivans, SUVs, trucks, and vans. Made in the USA.
Exterior hitch-mount lift · Power chairs AND scooters · 400 lb capacity · 102 lb installed · 36" × 39" platform (extends to 53") · Wheelbase up to 48" · 4 Q'Straint retractors · Class III hitch required. Compatibility confirmation required before every order ships.
Not sure the AL301XLHD fits your vehicle and device?
Call 866-218-0902
— Mon–Fri 9AM–5PM · Sat 9AM–3PM · Authorized Harmar Dealer · Local & Nationwide Installation
Before You Order — Class III Hitch Required · Compatibility Must Be Confirmed
The AL301XLHD requires a Class III hitch — Class II is not sufficient. The lift accommodates devices up to 400 lbs with a wheelbase up to 48". For devices under 350 lbs that need the XL platform, the standard AL301XL is the more economical choice. We confirm full compatibility on every order before it ships — no exceptions. Use the Harmar Compatibility Calculator below as a starting point then call us to verify before placing your order. We provide local professional installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM.
Maximum Platform. Maximum Capacity. One Lift.
400 lb Capacity · 36" × 39" Platform · Cradles to 53"
Every other Harmar exterior lift makes you choose between a large platform or a high weight capacity — the AL301XLHD delivers both at once. The 36" wide by 39" long platform with cradles extending to 53" is the largest footprint available in the Harmar lineup. The 400 lb capacity motor handles bariatric power chairs and heavy-duty scooters that exceed the limits of every other model. For users whose device is both large and heavy, this is the only Harmar lift that doesn't require a compromise.
4 Q'Straint Retractors · Front & Rear Cradles · No Modifications
The same proven self-tensioning Q'Straint retractor system used across the entire Fusion family — four retractors that hook to standard frame points on virtually any power chair or scooter, with no drilling or device modification required. Internal spring tension automatically maintains correct hold for highway travel. Front and rear wheel cradles lock the device in place on the extra-wide platform. The combination of the four-point retractor system and front/rear cradles gives the AL301XLHD one of the most secure hold setups in the exterior lift category.
Class III Required · Manual Crank Backup · Stars-N-Stripes Deck
The AL301XLHD requires a Class III hitch receiver — the heavy-duty motor and 400 lb load demand the additional tongue weight rating that only a Class III provides. Class III adapter (AL123X) included standard with drop adapter upgrades available. One-switch fully powered lift and automatic fold. Manual crank backup for emergencies. License plate mount included. Optional swing-away, battery pack, cover, and AL901XL license plate riser for states requiring elevated display. 3-year transferable warranty · Made in USA.
Full Specifications
| Model | AL301XLHD Heavy Duty Extra Large Fusion Lift |
| Lift Type | Exterior hitch-mount — device rides outside during transit |
| Weight Capacity | 400 lbs |
| Installed Weight | 102 lbs |
| Devices Accommodated | Power chairs · Scooters · No modifications required |
| Max Wheelbase | 48" |
| Platform Size | 36" × 39" · optional adjustable cradles extend to 53" (no charge) |
| Platform Design | Stars-N-Stripes perforated aluminum deck |
| Operation | Fully powered lift · automatic fold · one-switch · manual crank backup |
| Securement | 4 self-tensioning Q'Straint retractors · front and rear cradles |
| Hitch Class | Class III required (AL123X adapter standard) |
| Vehicle Compatibility | Minivans · SUVs · Trucks · Vans |
| Included | AL107 hitch post · AL123X Class III adapter · License plate mount · Manual crank backup |
| Optional Upgrades | Swing-away · Battery pack · Cover · License plate riser (AL901XL) |
| Standard Version Available | Yes — AL301XL · 350 lb capacity · View AL301XL → |
| Made in USA | Yes |
| Warranty | 3-year transferable Harmar warranty |
| Returns | Non-returnable once installed |
Complete Harmar Vehicle Lift Guide
Not sure if the AL301XLHD is the right lift for your vehicle and device? Our guide covers every Harmar lift we carry and explains which fits your situation. Read the Complete Vehicle Lift Guide →
Frequently Asked Questions
Both use the identical 36" × 39" platform with cradles extending to 53" and the same Class III hitch requirement. The AL301XL has a 350 lb capacity at 100 lbs installed. The AL301XLHD has a 400 lb capacity at 102 lbs installed, using a heavier-duty motor and actuator. If your device weighs over 350 lbs, or if you want the extra capacity safety margin for a heavy bariatric chair, the HD is required. Call us to confirm. 866-218-0902.
If your bariatric power chair weighs up to 400 lbs and has a wheelbase under 48", the AL301XLHD is the most capable exterior Harmar lift available. Call us with the chair's weight, wheelbase, and width and we will confirm whether it fits and whether your vehicle's Class III hitch can handle the tongue weight. 866-218-0902.
No — the four Q'Straint retractors hook to standard frame points on virtually all power chairs and scooters without any drilling or modification. Self-tensioning maintains correct hold automatically. Call us with your specific device make and model to confirm. 866-218-0902.
Professional installation is required for warranty coverage and safe operation. We provide local installation at all five of our Southwest Florida locations and coordinate professional installation nationwide through Harmar's authorized dealer network. 866-218-0902.
Compare Exterior Vehicle Lifts
350 lb · Same XL Platform
Harmar AL301XL Fusion Extra Large
350 lb · ~100 lb installed · Same 36"×39" platform · Class III hitch required
View →
View →
400 lb · Smaller Platform
Harmar AL300HD Heavy Duty Fusion
400 lb · 82 lb installed · 26"×39" platform · Class III hitch required
View →
View →
350 lb · Class II Hitch OK
Harmar AL300 Fusion Lift
350 lb · 80 lb installed · 26"×39" platform · Class II hitch or greater
View →
View →
All Exterior Vehicle Lifts
Full Exterior Lift Lineup
Every exterior hitch-mount lift we carry
Browse all →
Browse all →
Local Installation & Nationwide Shipping
We are an authorized Harmar dealer with over 25 years of DME experience. Local professional installation is available at all five of our Southwest Florida locations — Venice, Sarasota, Port Charlotte, Fort Myers, and Naples. For customers anywhere in the country we ship directly and coordinate professional installation through Harmar's authorized dealer network. Every order requires a compatibility confirmation before it ships — call us with your vehicle year, make, model, and device details and we will verify fit before you buy.
📞 866-218-0902 · Mon–Fri 9AM–5PM · Sat 9AM–3PM · Find your nearest location →
Technical Specs
Specifications for the AL301XLHD Heavy Duty Fusion Power Chair and Scooter
| Hitch Height: | 5" to 18" |
| Lift Operation: | Power |
| Power Source: |
Battery Hardwired |
| Works With Hitch Size: | Class III Hitch |
| Professional Install Available: | No |
| Service Contract Available: | No |
| Operation: | Power |
| Lifting Capacity: | 400 lbs. |
| Recommended For: |
Travel Scooters Full Sized Scooters Full-Size Power Wheelchairs |
| Platform Size - Length: | 39-53 in. |
| Platform Size - Width: | 36 in. |
| Installed Product Weight: | 102 lbs. |
| Warranty: | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes |
Specifications
Specifications for the AL301XLHD Heavy Duty Fusion Power Chair and Scooter
| Hitch Height: | 5" to 18" |
| Lift Operation: | Power |
| Power Source: |
Battery Hardwired |
| Works With Hitch Size: | Class III Hitch |
| Professional Install Available: | No |
| Service Contract Available: | No |
| Operation: | Power |
| Lifting Capacity: | 400 lbs. |
| Recommended For: |
Travel Scooters Full Sized Scooters Full-Size Power Wheelchairs |
| Platform Size - Length: | 39-53 in. |
| Platform Size - Width: | 36 in. |
| Installed Product Weight: | 102 lbs. |
| Warranty: | 3 Year Limited Warranty |
| Warranty - Transferable Warranty: | Yes |
